SIKO IH5815 (Optical)

SIKO IH5815 series with ABO signal interface, 1000 ppr, cable with open end, 01.0 cable / socket definition, with LineDriver output, 10mm hollow shaft, IP65 protection class

	Order Code:	IH5815-ABO-1000-E1-01.0-LD-10-IP65	E-mail this page Print this page Download PDF file
	Packaging:	1
	Min. Order:	1
	Supplier:	SIKO GMBH

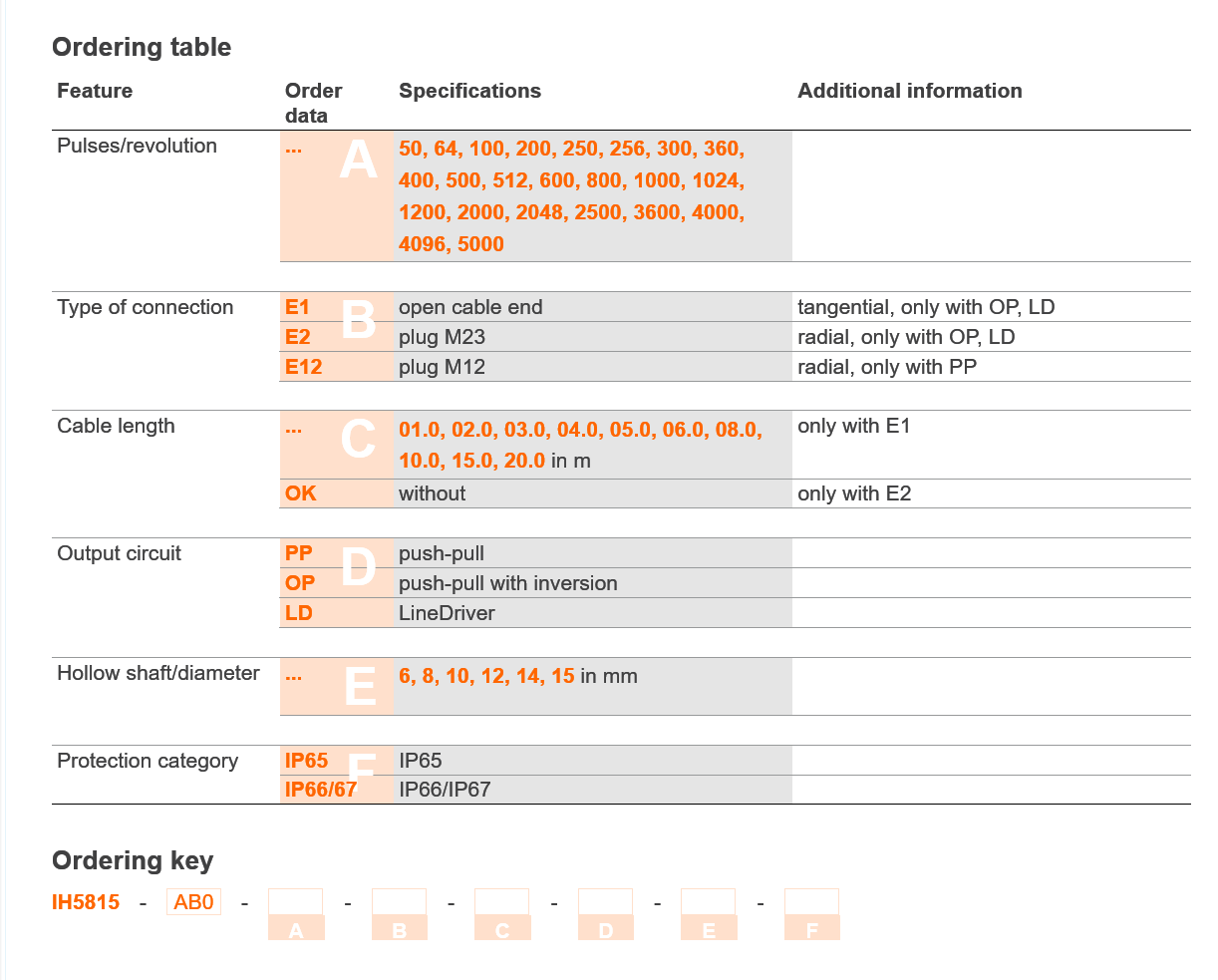

Order Code Builder :

SIKO GMBH offers user selectable variants and/or options. Dynamically build order-codes and initiate a Quotation Request.

• SIKO IV5815 incremental encoder - This Order Code Builder can create all the many variations of this robust incremental encoder

Description:

Incremental encoder IH5815
Robust optical standard rotary encoder, hollow shaft.

Basic Profile IH5815:

• Resolution max. 5000 pulses/revolution
• Through hollow shaft up to max. ø15 mm
• Robust bearing construction
• -40 °C … +85 °C operating temperature
• High shock and vibration resistance

• SIKO and 3rd party M12, M23 plugs with connection cables
• M12, M23 inline and right angle connectors from Binder and others.
• SIKO MA10/4 Panel meter.
• SIKO MA48 Panel meter.
• SIKO MA55 Panel meter.

Signal format

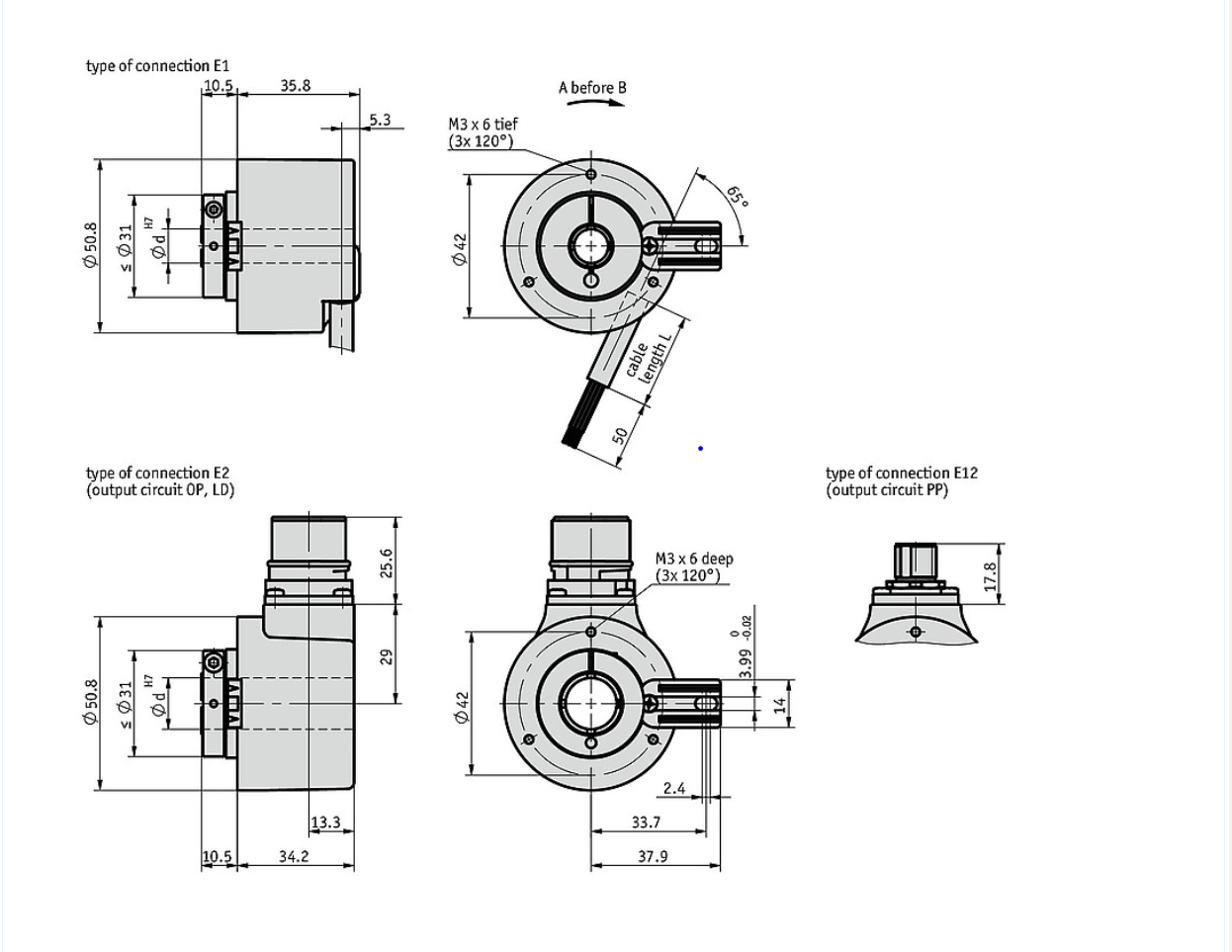

Technical Drawings
