SmartWorks Touch and optional, SmartWorks Imaging

SmartWorks Imaging licence purchase.

	Order Code:	SW100NZ	E-mail this page Print this page Download PDF file
	Packaging:	1
	Min. Order:	0
	Supplier:	Colortrac

Description:

    SmartWorks Touch.

SmartWorks Touch is included with every SmartLF SGi, SmartLF SCi and Colortrac MFP scanner sale. SmartWorks Touch provides all the functionality for daily scanning via an easy to use single touchscreen interface. The easiest way for multiple users to manage large format scanning, copying and printing. Video training available.

  Easy to use:

SmartWorks Touch is the easiest way to manage large format scanning, copying and printing. SmartWorks Touch MFP compatible with SCi mfp and Classic mfp scanners.

  SmartWorks Touch & Touch MFP:

Supported Scanners SmartLF SCi 25, SmartLF SCi 36 , SmartLF SCi 42, SmartLF SGi 36/44 and Classic scanners SmartLF SCi 25 MFP, SmartLF SCi 36 MFP, SmartLF SCi 42 MFP and Classic MFP scanners.

  Supported file formats:

(24-bit / 8-bit / 1-bit) Multipage PDF and TIFF

Single page PDF, PDF/A, JPEG, JPEG2000, PNG, TIFF, TIFF G4, TIFF LZW, PCX, BMP, AutoCAD DWF.

Compression is 70% for JPEG, PDF and PDF/A file formats.

Multi-page PDF files not compressed. Single page PDF, PDF/A, JPEG, TIFF, TIFF G4

Compression is 70% for JPEG, PDF and PDF/A file formats,

Single page PDF, PDF/A, JPEG, TIFF, TIFF G4 compression is 70% for JPEG, PDF and PDF/A file formats.

  Document type:

Sets color mode, dpi, file format and cleans-up automatically color photo, color lines, color document, highlighter, gray photo, gray lines, pencil tracing, bw copy and bw original. Scans to Raster file formats (see supported formats), USB memory stick (automatically detected), Email (requires a pre-configured email client) Raster file format (see supported formats), USB memory stick (automatically detected), Email (requires a pre-configured email client)
Scan-Once-Edit. There is no need to re-scan the document every time an adjustment is required. Reduces image process time and increases productivity (requires preview enabled).

  File Naming:

User definable with numerical suffix.

  Color Space:

sRGB

  Copy to:

Any printer supported by a Windows printer driver. Software uses the default Windows printer driver (selected from the Windows Control Panel) Any printer supported by a Windows printer driver. Software uses the default Windows printer driver (select from Windows Control Panel.

  Print to:

Any previewed scan file using the windows printer driver.

  Batch:

Available with scan and copy

  Paper sizes:

Select automatic paper size detection by scanner or select size manually from ISO (A4, A3, A2, A1, A0), ANSI (A, B, C, D, E, E+), ARCH (A, B, C, D, E, E1) and 30 x 42. Landscape and portrait orientations.

  Optical Resolution :

100, 200, 300, 400, 600, 1200 dpi

  Preview:

  Languages:

Application: English, French, Chinese, Russian, Portuguese, Polish, Korean, Japanese, Italian, Spanish, German selected automatically to match language of pc operating system.

  Help:

English. Requires an internet connection and browser.

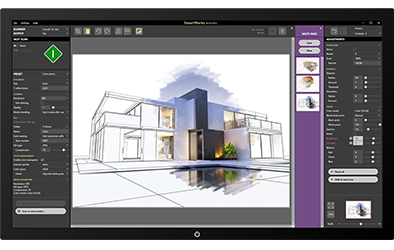

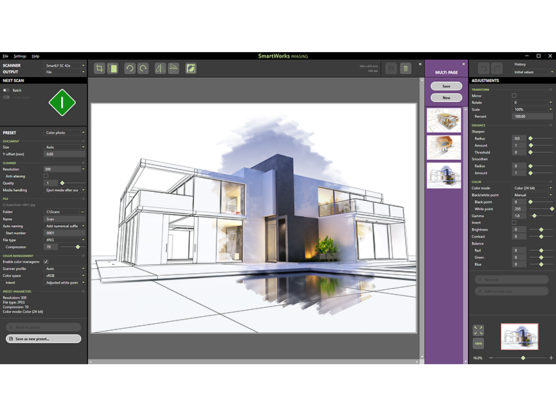

    SmartWorks Imaging - Optional Software

A faster performance with revised preset control, better printer drivers and a new multi-page thumbnail pop-out feature make SmartWorks Imaging the perfect productivity partner for SmartLF SCi and SmartLF SGi large format scanners. This newest SmartWorks software is a fresh implementation of the scan-once workflow trusted and appreciated by so many Colortrac customers. Developed to enhance the operation of SmartLF SCi and SmartLF SGi scanners, SmartWorks Imaging is:  Clear and easy to navigate  Faster performance with revised preset control  Embedded printer drivers  The perfect productivity partner for SmartLF SCi and SmartLF SGi large format scanners

  SmartWorks Imaging brief:

Optimized throughout, SmartWorks Imaging is clear and easy to navigate.
A faster performance with revised preset control, better printer drivers and a new multi-page thumbnail pop-out feature making SmartWorks Imaging the perfect high productivity partner for SmartLF SCi and SmartLF SGi large format scanners.

  SmartWorks Imaging software Specifications:

High productivity:New super-fast graphics engine and automatic image enhancement functions deliver high productivity and excellent quality scans every time.

Scan or Scan and copy: SmartWorks Imaging includes full scan and simultaneous copy functionality with optional preview alongside regular scan to file.
Scan file reworking: Old scans can be re-opened, reformatted, reprinted or resized by the user.
Trial version: SmartWorks Imaging is fully functional with SmartLF SCi and SGi scanners for 30 days before a digital license needs to be purchased.
Demo mode: SmartWorks Imaging can be evaluated without a scanner and all scan and copy functions explored for up to 30 days without a license.

Printer drivers: Drivers from all main printer manufacturers are included. Free updates from www.colortrac.com/smartworks-imaging-supported-printers.
User interface: A modern, dark theme interface uses high visibility colors for temporary settings. Choose standard or simplified layout.
Zoom and pan: Zoom and pan with ALT/CTRL + mousewheel or use bird's eye viewer for an instant confirmation of scan quality.
Progress indicators: Multi-page and copy collation thumbnails for visual feedback of scan and copy progress.

Presets (filters): Choose from a range of factory-made presets closest to your document. Presets can be copied, refined and adapted by the user.
Edit history: Return to any point in an editing sequence of un-saved changes.
Automatic features: Scan on paper detection (batch scanning)
Auto black and white points:
File numbering: Manual override / date and time stamping.

Borders Printed border removal during copy (i.e. cropping printer margins from old copies)
Advanced editing: Smoothing and sharpening, skewed image correction, invert and despeckle or holefill. Crop and add white paper functions for clean up of damaged originals.
Multiple black & white modes: Scan legacy drawings and choose from two levels of adaptive, dithered bi-tonal and simple threshold modes.

Color management: Select sRGB, Adobe RGB or a device (scanner) color space to work in.
Supported file formats: (24-, 8- or 1-bit) TIFF, TIFF packed bits, TIFF LZW, TIFFG3, TIFFG4, JPEG, JPEG2000, PDF, PDF/A, PNG, PCX, BMP, AutoCAD DWF.

File image - quality / size: Select from variable lossy, lossless or uncompressed file formats to control file size, image quality and scan file load time.
Non-raster PDFs: Scan legacy drawings and choose from two levels of adaptive, dithered bi-tonal and simple thresholding modes.
Open PDF: files containing scan and non-raster information
Maximum scan length: Unlimited for TIFF, greatly extended for PDF, JPEG limited to 65535 lines.

Maximum copy length: Not limited by scanner but dependent on scan dpi, printer and printer driver used.
Multi page documents: Scan multiple documents to a single output file. PDF and TIFF file formats only.
Security: No reliance on a physical protection device for greater user convenience and simpler delivery.
Operating system: Windows 11 64-bit, Windows 10 64-bit, Windows Server 2022.

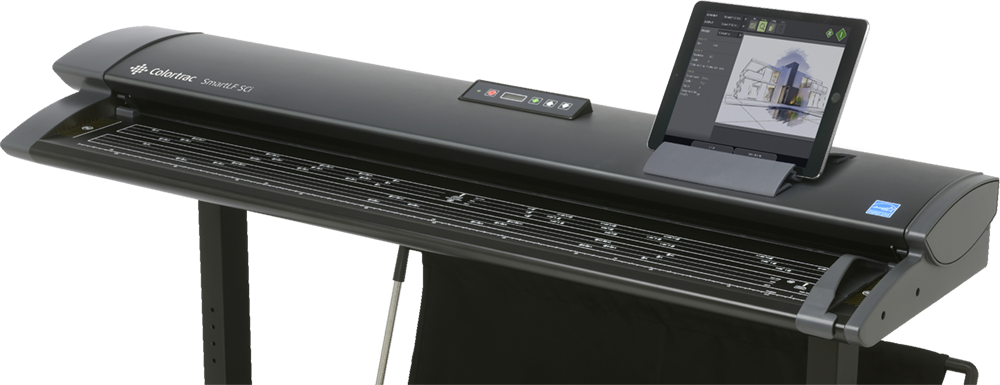

SmartWorks Imaging Link: The SmartWorks Imaging comes with the SmartWorks Imaging Link tablet app. This tablet app moves control of scanning with SmartWorks Imaging right onto the scanner. Download SmartWorks Imaging Links on App Stores https://apps.apple.com/id/app/smartworks-imaging-link/id1543171964 https://play.google.com/store/apps/details?id=com.gs.SwimLink. Useful for increasing productivity, reducing body and hand-eye movement and for users just getting started with scanning, the app brings the full power of the software running on the PC straight to the fingertips of the tablet user.
