CZUR Scanners by Mandeno Electronics (2015) Ltd.

Choosing a CZUR Scanner

Looking for functionality or creativity?
Business, Legal, Government, Education, Museums, Library?
Work or Home or Portable?
Software based on MS Windows or on Apple MAC?
A CZUR scanner can provide the solution.

Let us help you decide which model best matches your requirement and budget.
Initially CZUR was devoted to non-destructive book scanning, successfully implementing four key innovations to create a market leading product range.
The M3000Pro, now version 2, is supplied with a book cradle to reduce page curvature and improve symmetry between LHS / RHS pages.
As the camera images the open book pages, 3 lasers simultaneously scan and record the natural curvature of the open pages and immediately the CZUR software can successfully implement page flattening.
When pages are stiff and will not lie open the provision of "finger clots" allows the user to hold down left and right pages while the software recognizes the finger clot pattern and automatically removes the pattern from the saved image.
Reflections from glossy media, especially glossy magazines and higher quality books, is solved with the provision of clip-on side lights to complement the built in overhead lighting. The combination of these key technologies produces a very good scanned image, free of reflections.

The next goal was to complete the scans quickly.
For the majority of users scan speed is a sturdy foot switch but optionally a software button, hand switch or a scanner switch is available.
The introduction of AUTOSCAN, for repetitious jobs such as books, magazines and invoices means you only have to turn the page and your CZUR software will initiate the scan automatically. Many other software features are listed in the model camparison table below.
When scanning is complete, saving offers a choice file formats plus ABBYY OCR (Optical Character Recognition) options to create editable MS Word, MS Excel and searchable PDF.
The M3000Pro V2, ET25Pro, ET18Pro, ET16Plus provide the highest quality scans as required by curators, librarians and archivists, schools and universities and commercial volume users.

The Aura X Pro also incorporates the 4 key features mention above, but adds portability making it useful around the office, at home and in the field. The Aura X Pro model sold in New Zealand and Australia includes the side lights, a battery and mains power supply / battery charger and knob for lamp control making it a useful desk lamp, night reading lamp or night light, quality scans and convenience of folding for travel and storage The Aura X Pro, the right combination of quality scans, modest price and portability.

The recently introduced Shine series, explore scanning in new markets. Key features include lower cost and light weight portability. CZUR Shine scanners fold up for transport and storage, use a 500mA standard USB 2.0 high speed port for operating power and scan signal transfer to a laptop or desktop computer. The camera operates over a 90 degree arc, creating new scan applications and options. CZUR envisaged additional applications for portraits on ID cards, bank teller and access ID, field recording natural objects, where auto focus supports these ideas. Covid has made distance learning and communication via Zoom etc a normal part of our lives the ability use table video imagery in conjunction with inbuilt microphones can provide teachers and grandparents alike with a flexible audio + video interface with a steady base and flexible camera angle. With two free hands the A4 and A4/A3 surfaces can morph into a small "black" board well suited imparting classroom learning via video + audio link.
The economic Shine series will operate with built in or natural light. To scan glossy material the user may consider providing a refelction free side lighting.

There are more features to help users archive their ambitions. The detailed table below clarifies which features belong to which models.

At CZUR.com every model is supported with manuals and video training, allowing every scanner owner to train many users to become conversant with the options and features CZUR scanners and software provide.
Can we sell you a classy, fast and fully functional CZUR scanner? We hope so.

Court and legal documents

Books of any age

Easily scan office papers

WORKING from home?

Home SCHOOLING?

We can help with that!

Feature Comparison of CZUR Book and Document Scanners.
Series		M3000 V2 Book Scanner	ET Series Smart Book Scanners			Aura X Pro Personal Scanner	Shine Series Portable Scanners
Images
Model Names		M3000 Pro V2	ET25 Pro	ET18 Pro	ET16 Plus	Aura X Pro	Shine Ultra	Shine800A3 Pro	Shine800 Pro	Shine500 Pro
Character	Sensor type Pixels Resolution	CMOS 28 Megapixel 6144 × 4608	CMOS 25 Megapixel (5824 × 4368)	CMOS 18 Megapixel (4608 × 3456)	CMOS 16 Megapixel (4896 × 3672)	CMOS 14 Megapixel (4320 × 3240)	CMOS 13 Megapixel (4160 × 3120)	CMOS 8 Megapixel (3264 × 2448)	CMOS 8 Megapixel (3264 × 2448)	CMOS 5 Megapixel (2592 × 1944)
	DPI (default value)	360	330	250	275	240	A4:340 A3:245	A4:270 A3:205	270	210
	Scanning Size	A3, 420 × 297 mm 16.5 × 11.7 inch	A3, 420 × 297 mm 16.5 × 11.7 inch	A3, 420 × 297 mm 16.5 × 11.7 inch	A3, 420 × 297 mm 16.5 × 11.7 inch	A3, 420 × 297 mm 16.5 × 11.7 inch	A3, 420 × 297 mm 16.5 × 11.7 inch	A3, 420 × 297 mm 16.5 × 11.7 inch	A4, 297 × 210 mm 8.3 × 11.7inch	A4, 297 × 210 mm 8.3 × 11.7inch
	Scan Facing Page Books	Yes	Yes	Yes	Yes	Yes	Yes	No	No	No
	Scan speed	Flat single page ≤ 1.2sec Books ≤ 1.2sec / 2 pages	Flat single page ≤ 1.5s/page Books ≤ 1.5s/dual pages	Flat single page ≤ 1.5s/page Books ≤ 1.5s/dual pages	Flat single page ≤ 1.5s/page Books ≤ 1.5s/dual pages	Flat single page ≤ 2 s/page Books ≤ 2s/dual pages	≤ 1sec	≤ 1sec	≤ 1sec	≤ 1sec
	Colour bit depth	24 bits	24 bits	24 bits	24 bits	24 bits	24 bits	24 bits	24 bits	24 bits
	Save Scan (formats)	JPG(Resolution high / standard / low ) or TIFF(colour or Grayscale, LZW, JPEG or Group 4 compression) or (non-searchable) PDF
	Export Scans	After ABBYY OCR (searchable) PDF , Word , Excel or TXT
	Video streaming format	MJPG 3072×1728@12Fps	MJPG 3072×1728@12Fps	MJPG 3072×1728@12Fps	MJPG 3072×1728@12Fps	No	MJPG 4160×3120@10Fps	MJPG 3264×2448@10Fps	MJPG 3264×2448@10Fps	MJPG 2592×1944@10Fps
	Top LED lights	✅	✅	✅	✅	✅	✅	✅	✅	✅
	Side lights	✅	✅	✅	✅	✅	❌	❌	❌	❌
	Metal Book Cradle	✅	❌	❌	❌	❌	❌	❌	❌	❌
	Focus mode	Fixed focus	Fixed focus	Fixed focus	Fixed focus	Fixed focus	Auto Focus	Auto Focus	Fixed focus	Fixed focus

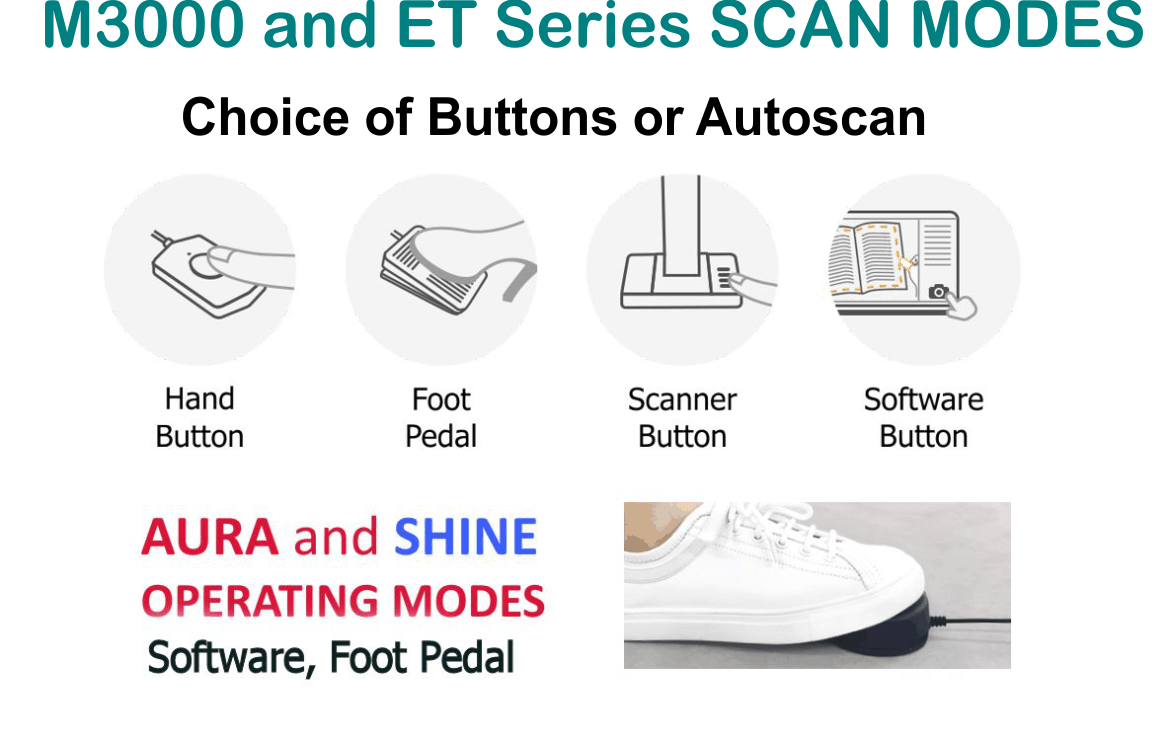

	Scanning method	Device Control, Software button + Autoscan, Hand button, Foot pedal	Device Control, Software button + Autoscan, Hand button, Foot pedal	Device Control, Software button + Autoscan, Hand button, Foot pedal	Device Control, Software button + Autoscan, Hand button, Foot pedal	Device Control, Software triggering, Foot pedal	Device Control, Software triggering, Foot pedal	Device Control, Software triggering, Foot pedal	Device Control, Software triggering, Foot pedal	Device Control, Software triggering, Foot pedal.
	System support	Win 7/8/10/11, 32/64-bit macOS 10.11 and above	Win 7/8/10/11, 32/64-bit macOS 10.11 and above	Win 7/8/10/11, 32/64-bit macOS 10.11 and above	Win 7/8/10/11, 32/64-bit macOS 10.11 and above	Win 7/8/10/11, 32/64-bit macOS 10.11 and above	Win 7/8/10/11, 32/64-bit macOS 10.11 and above	Win 7/8/10/11, 32/64-bit macOS 10.11 and above	Win 7/8/10/11, 32/64-bit macOS 10.11 and above	Win 7/8/10/11, 32/64-bit macOS 10.11 and above
Configurations	Processor	32-bit DUAL CORE OPEN RISC CPU	32-bit DUAL CORE OPEN RISC CPU	32-bit MIPS CPU	32-bit MIPS CPU	32-bit MIPS CPU	32-bit MIPS CPU	32-bit MIPS CPU	32-bit MIPS CPU	32-bit MIPS CPU
	Laser - assisted	3 laser rays	3 laser rays	3 laser rays	3 laser rays	3 laser rays	❌	❌	❌	❌
	LCD	2.4", 4:3, 320x240	2.4", 4:3, 320x240	2.4", 4:3, 320x240	2.4", 4:3, 320x240	2.4", 4:3, 320x240	❌	❌	❌	❌
	Microphone	✅	✅	✅	✅	❌	❌	❌	❌	❌
	Buzzer	✅	✅	✅	✅	❌	❌	❌	❌	❌
	Hand button	✅	✅	✅	✅	❌	❌	❌	❌	❌
	Foot pedal	✅	✅	✅	✅	✅	✅	✅	✅	✅
	Power	Input:100 to 240V, 50/60Hz Output: 9V/2A	Input:100 to 240V, 50/60Hz Output: 9V/2A	Input:100 to 240V, 50/60Hz Output: 9V/1.5A	Input:100 to 240V, 50/60Hz Output: 9V/1.5A	Input:100 to 240V, 50/60Hz Output: 9V/1.5A	USB 5V/500mA	USB 5V/500mA	USB 5V/500mA	USB 5V/500mA
	Scan signal interface	USB 2.0 high speed
Software features	OCR languages	180+	180+	180+	180+	180+	180+	180+	180+	180+
	Visual presentation	USB PC Visual Presenter 1920×1080@20FPS HDMI-1.4 (pc/mac) 1920×1080P@50Hz & 60Hz 1920×1080i@50Hz & 60Hz 1280×720P@50Hz & 60Hz	USB PC Visual Presenter 1920×1080@20FPS HDMI-1.4 (pc/mac) 1920×1080P@50Hz & 60Hz 1920×1080i@50Hz & 60Hz 1280×720P@50Hz & 60Hz	USB-PC Visual presenter	USB-PC Visual presenter	❌	USB-PC Visual presenter	USB-PC Visual presenter	USB-PC Visual presenter	USB-PC Visual presenter
	Flattening Curve	✅	✅	✅	✅	✅	✅	❌	❌	❌
	Smart paging	✅	✅	✅	✅	✅	✅	✅	✅	✅
	Smart tilt corrections and auto-cropping	✅	✅	✅	✅	✅	✅	✅	✅	✅
	Professional trimming	✅	✅	✅	✅	✅	✅	✅	✅	✅
	Background purifying	✅	✅	✅	✅	✅	✅	✅	✅	✅
	Finger clot removal	✅	✅	✅	✅	✅	✅	✅	❌	❌
	Image Scan modes	Colour, B&W, Gray scale, Auto, Patterns, Stamps	Colour, B&W, Gray scale, Auto, Patterns, Stamps	Colour, B&W, Gray scale, Auto, Patterns, Stamps	Colour, B&W, Gray scale, Auto, Patterns, Stamps	Colour, B&W, Gray scale, Auto, Stamps	Colour, B&W, Gray scale, Auto, Stamps	Colour, B&W, Gray scale, Auto, Stamps	Colour, B&W, Gray scale, Auto, Stamps	Colour, B&W, Gray scale, Auto, Stamps
	Watermark	✅	❌	❌	❌	❌	❌	❌	❌	❌
	Antiquarian Mode	✅	❌	❌	❌	❌	❌	❌	❌	❌
	Hole Punch filling	✅	❌	❌	❌	❌	❌	❌	❌	❌
	Distortion	<0.5%	<0.5%	<0.5%	<0.5%	<0.5%	single page <0.5% Facing page <1%	<0.5%	<0.5%	<0.5%
	Auto-scan	✅	✅	✅	✅	✅	✅	✅	✅	✅
	Manual Selection scanning	✅	✅	✅	✅	✅	✅	✅	✅	❌
	Screen recording	✅	✅	✅	✅	❌	✅	✅	✅	✅
	Video recording	✅	✅	✅	✅	❌	✅	✅	✅	✅
	Smart lamp mode	❌	❌	❌	❌	✅	❌	❌	❌	❌
	Foldability	❌	❌	❌	❌	✅	✅	✅	✅	✅
	Wi-Fi support	❌	❌	❌	Support, 2.4GHz band	❌	❌	❌	❌	❌
	CZUR Cloud	❌	❌	❌	✅	❌	❌	❌	❌	❌
	Image storage	❌	❌	❌	Device cache: Up to 150 pages	❌	❌	❌	❌	❌
Packaging and Accessories	Product appearance	Black	Black	Black	Black	Gray	Black	Black	Black	Black
	Packaging Dimensions	505520425 mm (L×W×H)	Data	460435245 mm	460435245 mm	524228160 mm	452162215 mm	452162215 mm	492175217 mm	492175217 mm
	Weight	5.6kg N.W. 13.35kg G.W.	2kg N.W. 5.1kg G.W.	2kg N.W. 5.1kg G.W.	2kg N.W. 5.1kg G.W.	1.5kg N.W. 3.2kg G.W.	1kg N.W. 2.3kg G.W.	1kg N.W. 2.3kg G.W.	0.75kg N.W. 1.85kg G.W.	0.75Kg N.W. 1.85kg G.W.
	Packaging list	Scanner, Side lights, USB cable, Power adapter, Hand button, Foot pedal, V-shaped Book Cradle, Specialized finger cots, CD, User manual, Warranty card, Quality certificate	Scanner, Side lights, USB cable, Power adapter, Hand button, Foot pedal, V-shaped Book Cradle, Specialized finger cots, CD, User manual, Warranty card, Quality certificate	Scanner, Side lights, USB cable, Power adapter, Hand button, Foot pedal, Black document pad, Specialized finger cots, CD, User manual, Warranty card, Quality certificate	Scanner, Side lights, USB cable, Power adapter, Hand button, Foot pedal, Black document pad, Specialized finger cots, CD, User manual, Warranty card, Quality certificate	Scanner, Side lights, USB cable, Power adapter, Travel Battery, Foot pedal, Black document pad, Specialized finger cots, CD, User manual, Warranty card, Quality certificate. NZ / AUS version.	Main Device, USB Cable, Foot Pedal, Soft Pad, User Manual	Main Device, USB Cable, Foot Pedal, Soft Pad, User Manual	Main Device, USB Cable, Foot Pedal, Soft Pad, User Manual	Main Device, USB Cable, Foot Pedal, Soft Pad, User Manual
