| In the box |

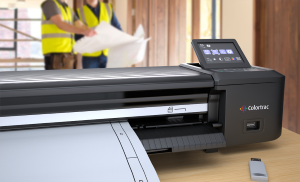

Scan! large format scanner
Tough wheeled carry case
Mains external power supply
Calibration target
RJ45 Ethernet cable |
| Scan System |
Three modes of operation.
TIFF and PDF files are generated inside the scanner. They can be
1 – stored in the scanner for transfer to a PC later
2 – stored directly on a USB stick
3 – transferred, via wired Ethernet, direct to a network or PC.
When connected to a PC, additional black and white binary files are available.
SmartLF Scan! is self-contained and only requires a power supply to operate. |
| Scan software |
Scan formats are viewable using native Windows Apps. A small Windows program is supplied to receive live or stored scan files from the scanner. This is not required for scan to USB stick operation. |
| Optical Resolution |
600 dpi |
| DocLogic |
Intelligent image optimisation system automatically sets dpi of document or photos according to physical size to maximise image quality and reduce file size |
| Max Scan Width |
24” (609.6 mm) |
36” (914.4 mm) |
| Max Image Length |
50" (1270mm) |
| Min Media Width / Thickness |
6.2” (160mm) / 0.003” (0.07 mm) |
6” (150 mm) / 0.003” (0.07 mm) |
| Max Scan Width |
26” (660mm) / 0.02” (0.5 mm) |
38” (965 mm) / 0.02” (0.5 mm) |
| Paper sizing (image sizes) |
ISO DIN / ARCH / ANSI / automatic width and length |
| Internal memory |
Approx. 6 GB or 8 scans |
| Scan Accuracy |
0.2 % +/-1 pixel |
| SingleSensor digital imaging technology |
SingleSensor is a full width straight-line contact image sensor (US patent #8,922,849) bi-directional long-life LED light system for optimum object illumination and instant-on scanning capability |
| Operation modes |
Scan to internal memory / scan to USB stick (not supplied) / scan to networked computer |
| Color space |
24-bit sRGB and grayscale (plus bitonal using the pc connection) |
| Scan speeds (maximum at 200 dpi) |
4.5 inch/sec (114.3mm/sec) grayscale and 3 in/sec (76.2mm/sec) for color. |
| Paper Path |
Centered, face-up, front entry |
| Data interfaces |
Front: USB2 socket for scan to USB memory stick. Rear: Ethernet RJ45 GBit for scan to computer over network |
| Power Requirements |
External power supply Input: 100~240VAC, 50-60Hz, auto-sensing +/-10%, Output: 3.42A at 19V, Scanner power consumption: 19.4 W (scanning), 10.2W (standby), 0.05W (sleep). Energy Star qualified |
| Environment |
Operating temperature 10oC – 35oC, Relative Humidity 10% – 90% (non-condensing) |
| Weight & Dimensions (WxHxD) |
Scanner only 11.5 lbs (5.2 kg) / 34.3 x 6.3 x 5 inches (870 x 160 x 126 mm)
Scanner incl. case: 22.3 lbs (10.1 kg) / 38.6 x 10.4 x 8.2 inches (980 x 265 x 208 mm) |
Scanner only 15.4 lbs (7 kg) / 46.3 x 6.3 x 5 inches (1175 x 160 x 126 mm)
Scanner incl. case: 30.9 lbs (14 kg) / 50.4 x 10.4 x 8.2 inches (1280 x 265 x 208 mm) |
| Host Platform |
Windows 10, Windows 8, Windows 7, 32-bit and 64-bit architectures |
| Certifications |
ENERGY STAR qualified, CB, CE, CCC, FCC, UL, RoHS compliant |
| Warranty |
12 months / 30,000 linear metres whichever comes first |
